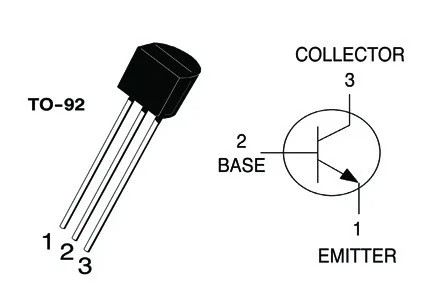

2N3904 NPN Transistor

Tekniske detaljer:

Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.31 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 40 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 0.2 A
Max. Operating Junction Temperature (Tj): 135 °C
Transition Frequency (ft): 300 MHz
Collector Capacitance (Cc): 4 pF
Forward Current Transfer Ratio (hFE), MIN: 40
