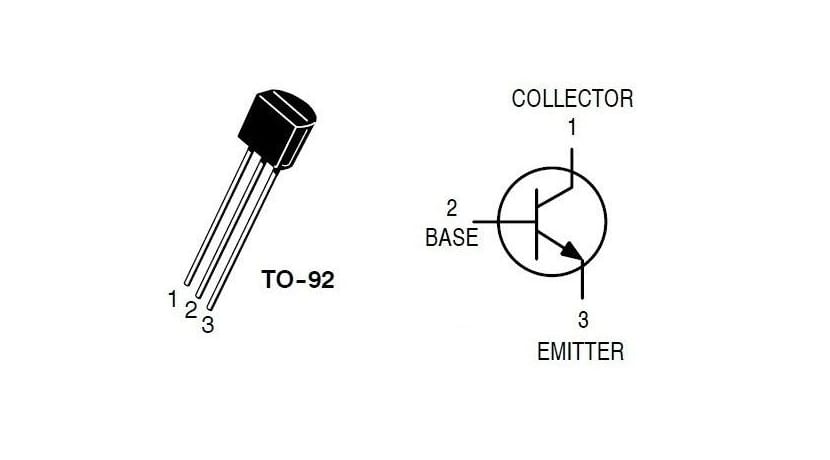

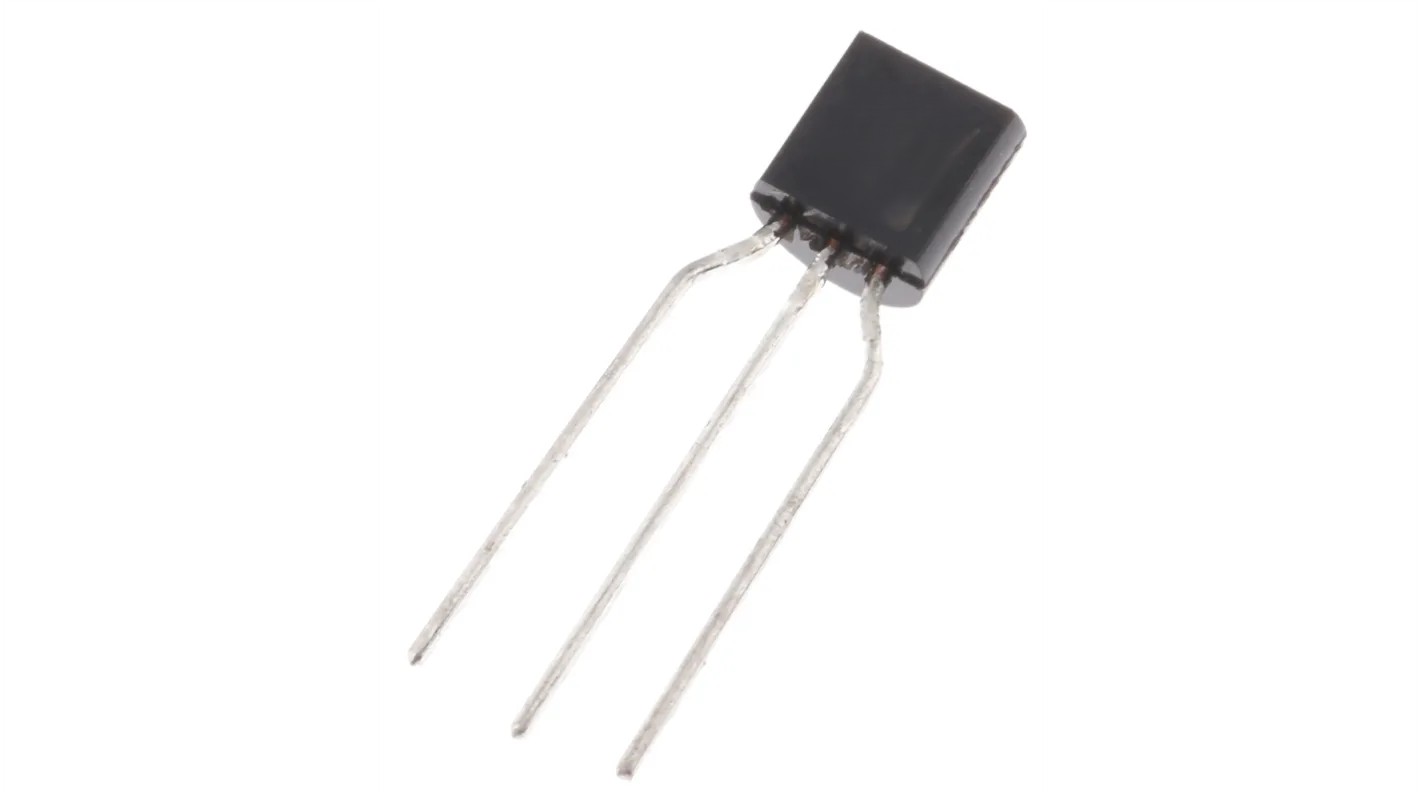

BC547A NPN Transistor

Tekniske detaljer:

Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.5 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 200 MHz
Collector Capacitance (Cc): 4.5 pF
Forward Current Transfer Ratio (hFE), MIN: 200
